The PowerMac G4 MDD (Mirrored Drive Doors) was apple's G4-Based Flagship from 2002-2004. All revisions of this computer can run leopard (With 512MB+) It has a mirrored finish on the drive covers, hence the term 'Mirrored Drive Doors.' This computer replaced the powermac G4 'Quicksilver' and was replaced by the PowerMac G5 In 2004. These computers came with CPU's with the following clock speeds; 867Mhz, 1Ghz, and 1.25Ghz in single and dual configurations, as well as a Dual 1.42Ghz Model. Later revisions of the 1.25Ghz and Dual 1.42Ghz Models supported AirPort Extreme instead of original Airport, and FireWire 800, These Computers were the first macs that could not boot into OS9.
This teardown is not a repair guide. To repair your Power Mac G4 MDD, use our service manual.

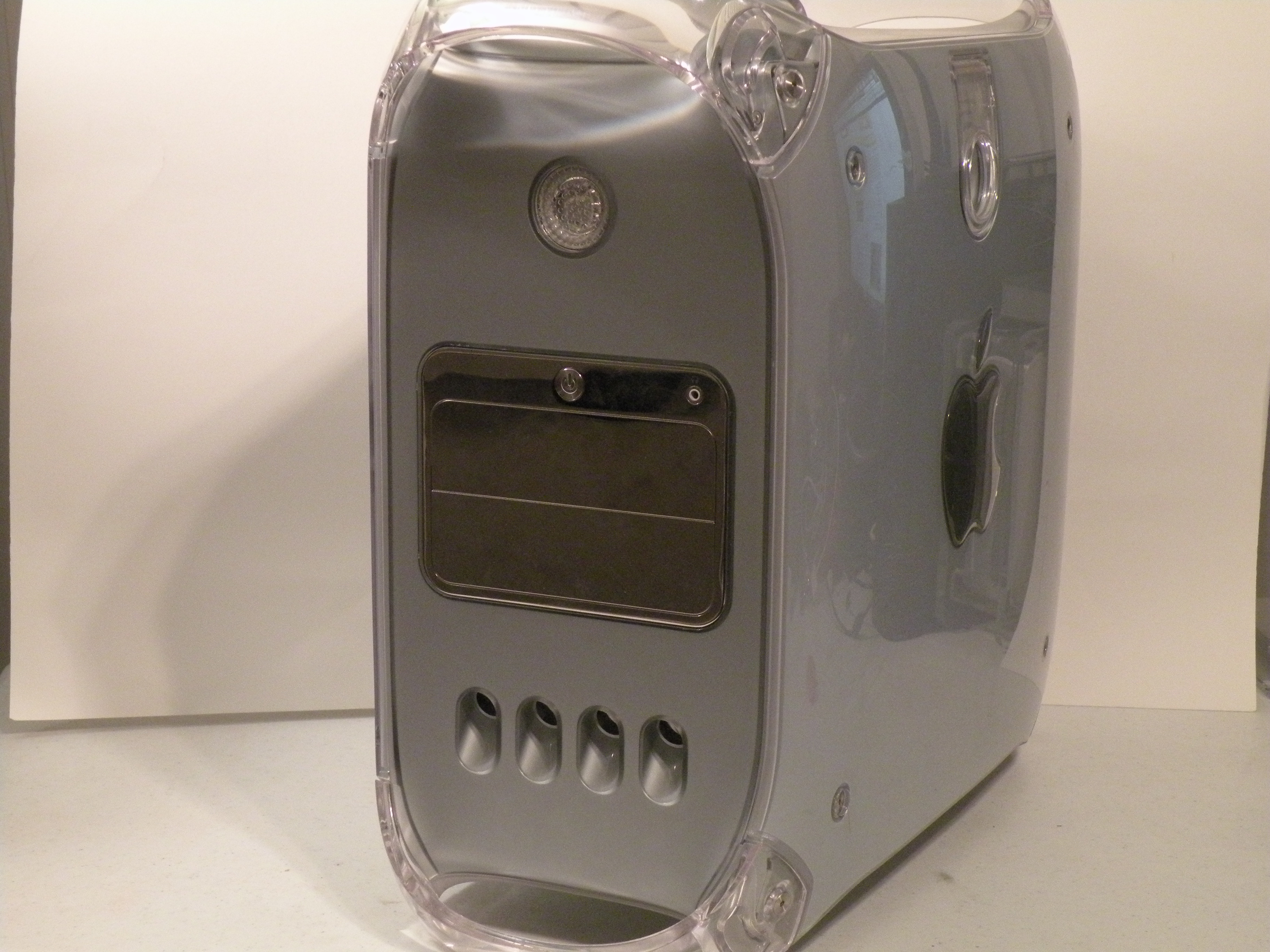

The Power Mac G4 MDD: the last, and the fastest G4-based Mac. This computer boasted up to a Dual 1.42GHz PowerPC G4 CPU (though I have a single 1.25GHz).
Six USB ports.
Four FireWire ports.
Assorted SCSI (SCSI50/SCSI68)
Assorted Audio
Video (ADC & DVI)
Networking (RJ-45 Ethernet/56k Modem)
Some later model MDD's (such as the dual 1.42GHz) Have a FireWire 800 Port Here:
Unplug the computer.
Unplug the power supply and all external connections from the computer.
Pull on the side lever and lower the side of the case.
The ram is between the graphics card, and the CPU, and removal is simple. Push the tabs down on both sides, this will free the ram, then lift it out.
The MDD Uses A Maximum of 2GB PC2700 DDR,(512MB X4) and had 4 slots for ram.
The AirPort card is located next to the graphics card.
If your computer has a FireWire 800 port between the FireWire 400 Ports and the Ethernet Ports then your computer uses an AirPort Extreme 802.11g Card (See Related Parts). If your computer has no firewire 800 port, then your computer uses an 802.11b AirPort PCMCIA Card (Also See Related Parts). Removal of both cards is pretty much the same.
First disconnect the antenna from the card, it may be helpful to use a spudger or flathead screwdriver.
Now, grasp the plastic tab on the back of the card and pull it out of the computer.
The Airport 802.11b PCMCIA Card.
These lists give the McCulloch part number(s) and a description of each item to make sure you are ordering the correct part.McCulloch Service GuidesThese McCulloch Service Guides are the same guides/manuals that McCulloch DEALERS/MECHANICS used to service your McCulloch Chain Saw. https://clothesomg.netlify.app/mcculloch-power-mac-320-manual.html. This digital download includes four (4) different McCulloch Power Mac Illustrated Parts List (IPL), two McCulloch Service Manuals and One Owners Manual. Ive also included two separate Service Manuals and the Owners manual for these saws. The odds are if you own a McCulloch Power Mac 310, 320, 330, or 340 Chain Saw, your parts list is in this package. A total of seven (7) different manuals covering the McCulloch Power Mac 310, 320, 330, 340.Be sure to check the below chart to make sure your specific model number is included in this offer.Parts List -Each or the four Illustrated Parts List are a little different but all basically include an exploded schematic of the engine, power head, carburetor and chain brake assembly with an easy to find corresponding parts list.
The hard drive cages are located here.
Cage 1
Start by removing this screw.
Remove the ATA-66/ IDE ribbon cable from the motherboard.
Now, remove the power connection from the drives.
Push this tab down, and pull the cage toward you.
Now, you can set cage 1 aside.
Cage 2:
Remove this Phillips screw:
Disconnect this IDE ribbon cable from the logic board.
It's likely that there is a cable clip holding the ribbon cable to the case.
To remove it, push the end, and it should pop up.
With the ribbon cable clip free, pull this tab towards you, slide the cage up until it hits the platform under the power supply, and pull it away.
Now, set the cage on top of the CPU, and remove the power connectors.
Once the cables are free, set the drive cage aside.
To remove the hard drives from the cages, remove the four screws on the sides of the cage that are connected to the drives, then slide the drives out.
The two cages are cross compatible and can be put in either location.
Fiberworks pcs manual mac. Jul 08, 2015 Fiberworks PCW, software for weavers. Welcome, new developments, versions of software, outline of features, download PCW, system requirements, gallery of. Jan 01, 2016 - The Looms manual (44 pages) for the Plus component is included as a pdf file - Printed copies of the Looms manual available as an option - On older Windows versions ME, 98, 95 and NT4 and for LIPS based looms including original Schacht Combby, you must stay with version 4.1. FIBERworks™ Owner's Manual Important Notice Attention Installer. This manual contains important information about the installation, operation and safe use of this product. This information should be given to the owner/operator of this equipment. WARNING Pentair Pool Products 1620 Hawkins Ave., Sanford, NC 27330. (919) 774-4151.
The MDD does not have a 128GB drive limit like older Macs. My MDD has 3 drives (a 400GB Hitatchi Deskstar, 40GB Seagate Barracuda 7200.7, and a 30GB Quantum Fireball LCT).
Note the ID jumpers on the two drive set. One is set to Master, the other to slave. A single drive can be set to Cable Select.
Start removing the optical drive cage by removing its back cover.
Now, remove the IDE and power cables from the drives.
Remove these two Phillips screws:
Pull the cage away from the front until it is free.
Slide the cage towards you, and out of the Mac.
To remove the drive(s) from the cage, remove the two screws on each side of the drive(s), then pull the drive out of the cage.
My MDD has a 3rd party 22X SuperDrive, for burning DVD's in Leopard (Thank You Generic Drive Support!)
The Power Mac G4 MDD uses a Mac-Compatible AGP Graphics card with ADC, And DVI or VGA.
My mac has a NVIDIA GeForce4 Titanium with 128MB of video ram, this was an excessively large card, for some reason.
Start by removing this Phillips screw.
Using a flathead screwdriver, spudger, or your finger pull this tab towards you, and lift the card out.
The 'excessively large' NVIDIA GeForce4 Titanium 128MB. This was one of the most powerful cards on the market when this computer was released, now, there are flashed cards such as the Radeon 9700 Mac, but this is the most powerful AGP ADC supporting card, great for gaming, Photoshop, and other 3D intensive applications.
The DVI And ADC Ports.
The Power Mac G4 MDD Supports four PCI Cards, allowing for SCSI, sound, wireless networking (only AirPort compatible clones) USB, FireWire, etc. The PCI slots do not, however support PCI graphics.
Remove the screws for any occupied PCI bays.
Logitech C615 Software and Driver Download, Manual, Install For Windows and Mac-The Logitech C615 includes a webcam with the best image quality that you can get at a relatively low price.Then, the C615 also has an alternative quality from a digital camera, such as the sound quality of a good electro-acoustic transducer. Logitech c615 webcam software. Mar 19, 2019 Logitech HD Webcam C615 Software Install For Windows Mac. Logitech HD Webcam C615 Driver& Software Setup Download – Logitech HD Webcam C615 is a product that is used in almost all countries in the world.Therefore we provide complete drivers for this type of Logitech HD Webcam C615. Apr 16, 2019 Logitech C615 Software & Driver Download, Manual Setup, Review, Logitech Options, How to connect Unifying USB Receiver, USB cable, Easy-Switch – Full 1080p HD may be an alluring webcam option, but for some, that feature (and its resulting price) is overkill.On the other end of the spectrum, stepping down to bargain models can shave off too many bells and whistles. Logitech C615 Drivers, Manual, Software Download for Windows & Mac OS - Welcome to the download website 'www.driver-logitech.com' on this website we provide all Logitech software for your Logitech drivers and also we provide solutions to solve the problems you face with the Logitech products that you currently have and also on this page we provide the Logitech C615 drivers to help solve. Mar 20, 2019 Logitech HD C615 Software & Driver Download, Manual Setup, How to connect Unifying USB Receiver, USB cable, Easy-Switch, Logitech Options –Now we’re taking a look at the brand new Logitech C615 HD Webcam Software sequel to the famed Logitech C615 Software, which acquired our highest award.The layout was upgraded to make this Product considerably thinner.
Once the screws are removed, pull each card straight up and out of the computer one at a time.
The Cards:
Adaptec SCSI 50-Pin
2011-3-4 i have a question as i am very new to numbers (excel too for that matter) I imported a model from excel that has circular references until i enable iterative calculations.( to do it in excel: Select ALT T, O and then on the 'Calculation' tab check the box that says enable iterative calculation.) how would i. If you are operating Excel for Mac 2011 or 2016, you may receive the following message. And then under Iteration, select the Limit iteration check box. In the Maximum iterations box, type the number of iterations that you want to set as the maximum number of times Excel recalculates. Circular Reference - Excel for Mac Dave w. Excel Options dialog box will appear. Click on Formulas option. Check the option of Enable Iterative calculations. In Excel, Maximum iteration is 100 and Maximum change is 0.001, it is a default setting in Excel. Usually, Excel reaches sufficiently accurate results in as few as three iterations. How to enable manual iteration on excel mac 2011.
Adaptec SCSI 68-Pin
USB/FireWire Expander
M-Audio HD Sound Card
NVIDIA GeForce4 Titanium (Mac Edition) DVI & ADC
You may find removing the system fan is unnecessary to remove the power supply cable from behind it, but if you're unfamiliar with how the power supply cable is situated behind the fan, this step is useful in seeing this.
Disconnect the optical drive IDE/ATA-33 cable from the logic board.
Disconnect the system fan 2-wire power cable connector from the logic board.
Grab the system fan by its sides and pull it up and out. The system fan is very large and loud, compared to standard sized fans.
To remove the power supply connector from the motherboard, push the top end of this clip towards the power supply connector, and pull the connector up and off the motherboard. If the connector seems to be stuck, rock it back and forth a tiny bit to loosen up the connection, then pull up again.
Push on these two clips here to release the power cable.
Thread the power cable out of the small hole it comes through, at the far side of the Mac.
Remove this Phillips screw:
There may be a small 2.5mm hex (not Torx) screw here on the back of the case, it must be removed if present:
Slide the power supply towards the front of the case, and pull it out. It is a little heavy, so don't drop it on the logic board. Disconnect any drive power connectors that you may not have already connected.
The power supply has a 24-pin connector with non-standard voltages, so dropping in a 24-pin ATX power supply without modification isn't a great idea.
The power supply connector has a 25V lead to drive Apple ADC displays, so though it is possible to modify an ATX power supply, it won't be able to drive ADC displays, just VGA, or DVI, though the computer will work fine (I've actually tried this).
It also has three 12V/5V rails to drive all six drives (four hard drives, two optical drives) simultaneously. This is the only Macintosh computer other than the Mac Pro to support six drives.
This is also the notoriously loud AcBel 400W 'Windtunnel' power supply
Now, remove these three Phillips screws:
As there are two Phillips screws well, there are two that you can see in the photo, but you want to remove the screws that are behind them.
Oct 18, 2010 Page 1 of 2 - McCulloch Mini Mac 6 manual - posted in Tool Shed: I borrowed the chain saw from my dad a few months ago after a big wind storm to cut up some limbs. The saw was purchased new by my great grandfather, its a Mini Mac 6. Mcculloch mini mac 6 manual online. Download 349 Mcculloch Chainsaw PDF manuals. User manuals, Mcculloch Chainsaw Operating guides and Service manuals. Manuals; Brands; McCulloch Manuals; Chainsaw; McCulloch Chainsaw manuals Manualslib has more than 349 McCulloch Chainsaw manuals. POWER MAC 6 03. POWER MAC 6 71.
Now, lift the heatsink up off the computer, it is pretty heavy, because it's a giant block of aluminum.
Be careful when holding it, the edges can be sharp, making it likely to get cut if you hold it wrong!
As you may be able to tell, i have applied a replacement coat of Arctic Silver 5 to keep my MDD cooler than the stock paste, it really does a great job too!
The incredibly large heatsink, this thing is 5 Lbs of solid aluminum. Just like every other part in this, and many other Macs, the heatsink is made by: ..you guessed it, Foxconn.
The Powermac G4 MDD's, Guts Spilled On My Desk:
The PowerMac G4 MDD Complete With Pro Speakers, 17' Studio Display, Mighty Mouse And Keyboard, Runs Leopard Server and Ubuntu 9 Beautifully.
